2127 Series -
1.27 x 1.27mm (0.05"x0.05") ctr. IDC Socket for .025" ctr flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Electrical:

Contact Current Rating: 0.5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 250V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -40oC to +105oC

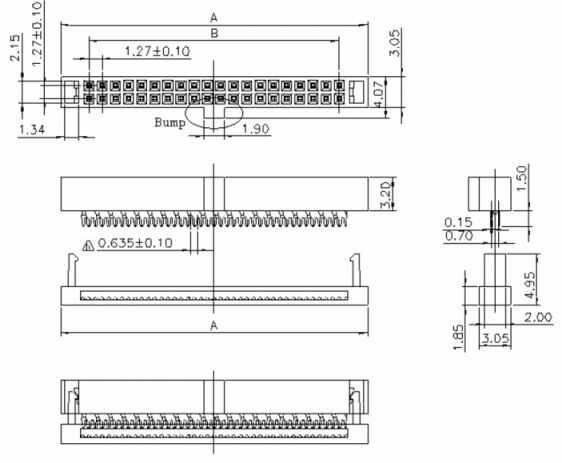

Drawing : 2127 pdf file.


RoHs

Ordering Part Number

2127 -

[][]

[]

- []

Series Number

Number of Positions

Contact Plating

Options
(Strain Relief is not available)



6, 8, 10, 12, 16, 20
26, 30, 34, 40, 44
50, 60, 68, 80

Blank: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold

Blank: With Polarization
N: Without Center Polarization
