2254 Series
0.079"/2.00mm Single Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2524 , 2525 Series

Electrical:
Current Rating: 2 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25oC to +105oC


Ordering Part Number
2254 - 1 X [][] [] -[][]
Series Number Number of Rows Number of Positions Contact PlatingConfiguration
for Bottom Entry & SMT
2254: Straight
2254B: Bottom Entry
2254R: Right Angle
2254S: Surface Mount

[ 1 thru 40 pins ] G: 5" Gold Flash
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold		 B1
B2
2254 Straight

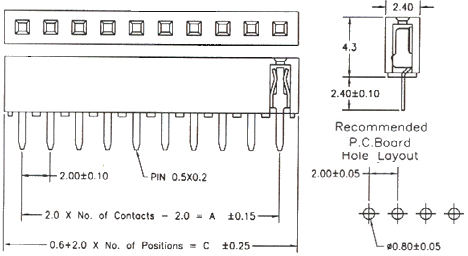

2254 Straight Dimension
2254R Right Angle
2254R Right Angle Dimension
2254 Bottom Entry
2254 Bottom Entry Dimension
2254S Surface Mount
2254S Surface Mount Dimension
