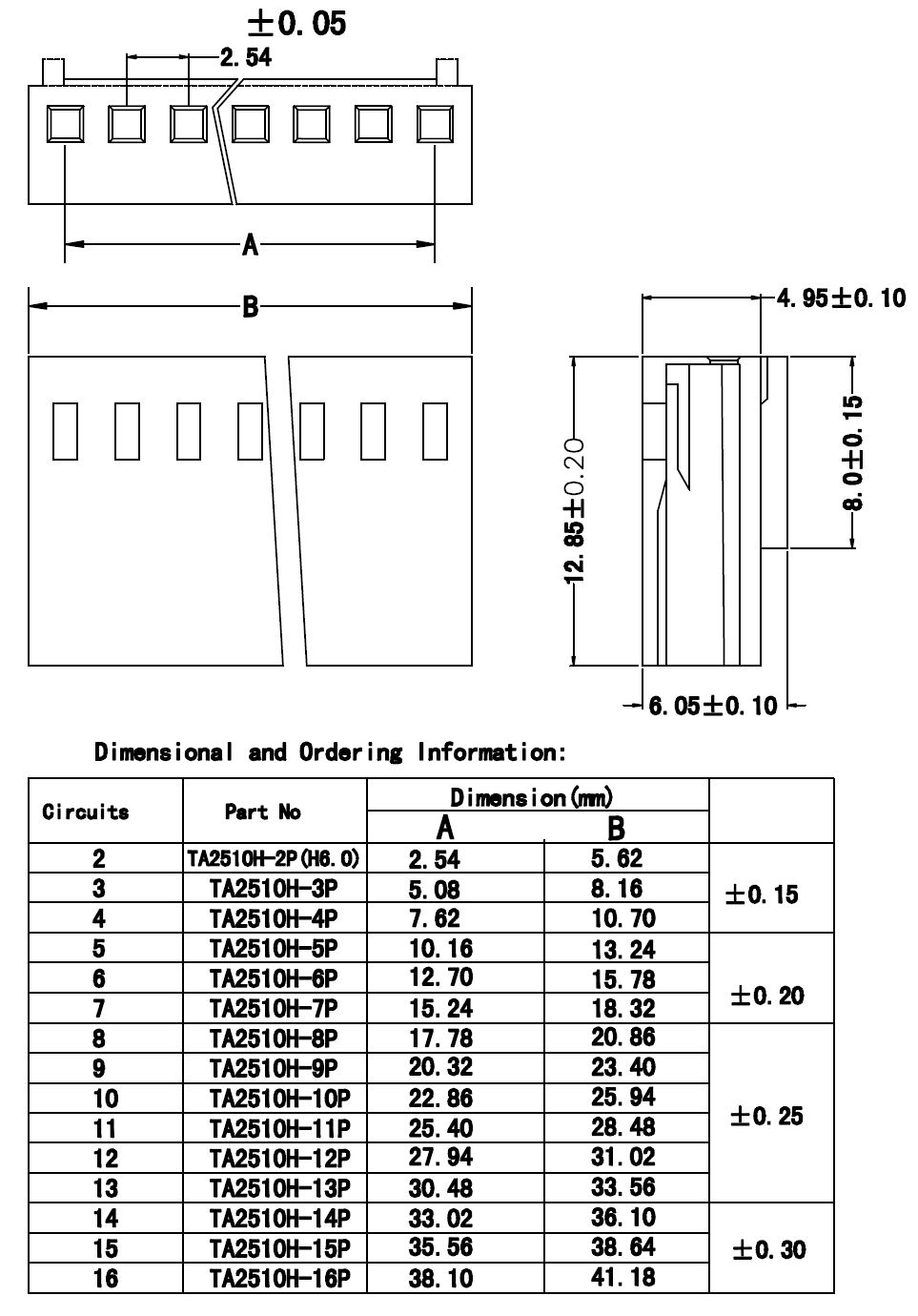

2500 Series
0.100" Center Terminal Housing; Polarized; Rails

Material:
Contact: Brass
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2506, 2507 Series
AWG:  22 ~ 28 AWG

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25^oC to +85^oC

---

Ordering Part Number

2500 -	[][]
Series Number	Number of Positions
	[ 2 thru 20 pins ]

Terminal Contacts Part Number: 2500-10T (Tin platng)
2500-10G (Gold platng)

Quantity per reel: 10000 pcs
