25100 and 25110 Series
0.100" Center Shrouded Header
[ w/ Locking Latch ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connector: 2550-L, Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 15 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 600V AC
Operation Temperature: -40^oC to +125^oC

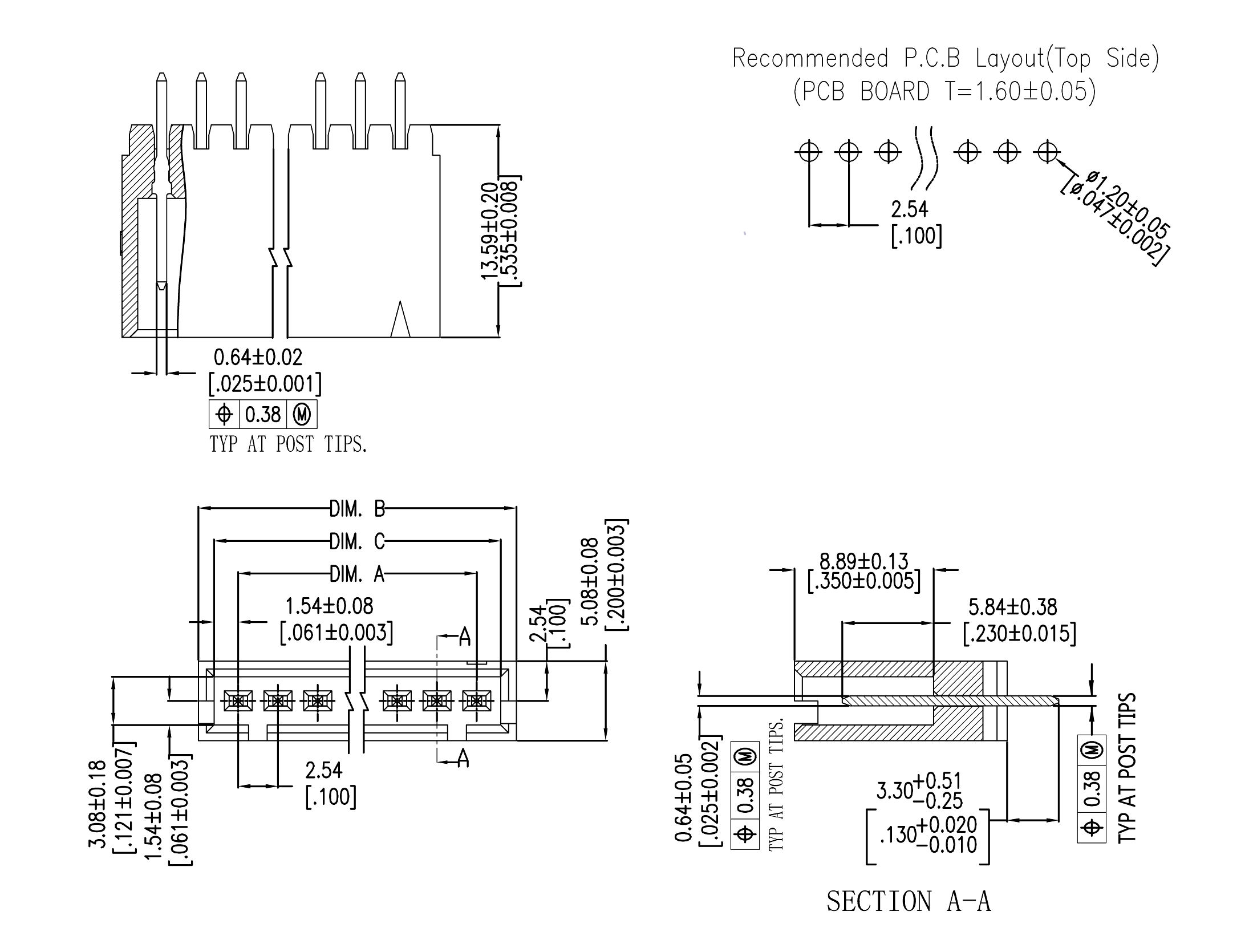

Pdf Drawing: 25100 25100

---

Ordering Part Number

25100 -	[][]	[]
Series Number	Number of Positions	Contact Plating
25100: Vertical 25110: Right Angle	[ 2 thru 20 pins ] 12 ~ 20 pins MOQ requested	Blank: 0.000005" Gold F: 0.0 00010" Gold E: 0.000015" Gold D: 0.000030" Gold
