2530 Series
0.100" Center Shrouded Header; Eject Latch

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black or Gray
Mating Connector: 2540 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +105oC

RoHs

Ordering Part Number

2530 -

[][]

[]

[]

- []

Series Number

Number of Positions

Latch Type

Contact Plating

Color



10, 12, 14, 16, 20,
24, 26, 30, 34, 40,
50, 60, 64

Blank: Long Latch
S: Short Latch

Blank: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold

Blank: Black
G: Grey

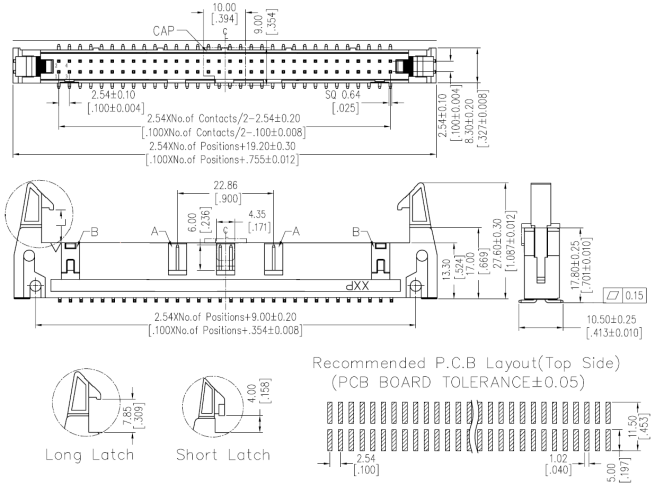

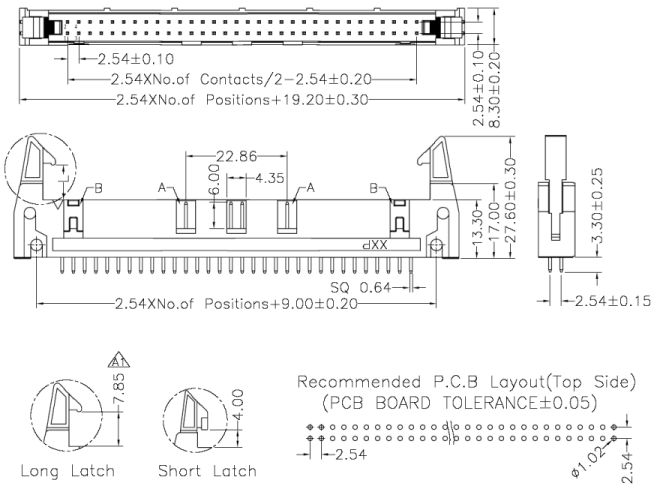

Dimensions (mm)

Pos.

A

B

C

D

E

10

31.94

29.80

21.84

17.91

10.16

14

37.08

34.98

26.92

22.99

15.24

16

39.62

37.52

29.46

25.53

17.78

20

44.70

42.60

34.54

30.61

22.88

24

49.78

47.68

39.62

35.69

27.94

26

52.32

50.22

42.16

38.23

30.48

30

57.40

55.30

47.28

43.31

35.56

34

62.48

60.38

52.32

48.39

40.64

40

70.10

68.00

59.94

56.01

48.26

50

82.80

80.70

72.64

68.71

60.96

60

95.50

93.40

85.34

81.41

73.66

64

100.58

98.49

90.42

86.48

78.74
