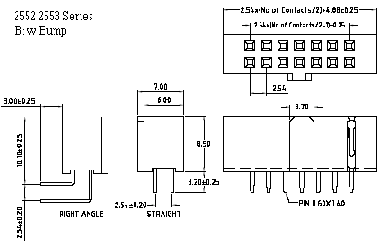

2553 Series
 0.100"x 0.100" Dual Row PCB Socket Strip
[ Right Angle ]

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2542 , 2543 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +105oC
Ordering Part Number
2553 - 2 X [][] []- []
Series Number Number of Rows Number of Positions Per Row Contact PlatingKey


[ 2 thru 40 pins ] G: 0.000005" Gold
F: 0.0 00010" Gold
E: 0.000015" Gold
D: 0.000030" Gold		 Blanket: w/o  key
B: w Key/Bump
