2555 Series
 0.100" Single Row PCB Socket Strip [ Right Angle ]

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2544 , 2545 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55
oC to +105oC



Ordering Part Number
2555 - 1 X [][] []- []
Series Number Number of Rows Number of Positions Contact Plating Body Height


[ 1 thru 40 pins ] G: Gold Flash
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold
BLANK: 8.5mm
5.0: 5.0mm
5.7: 5.7mm
X: specify body height if not listed

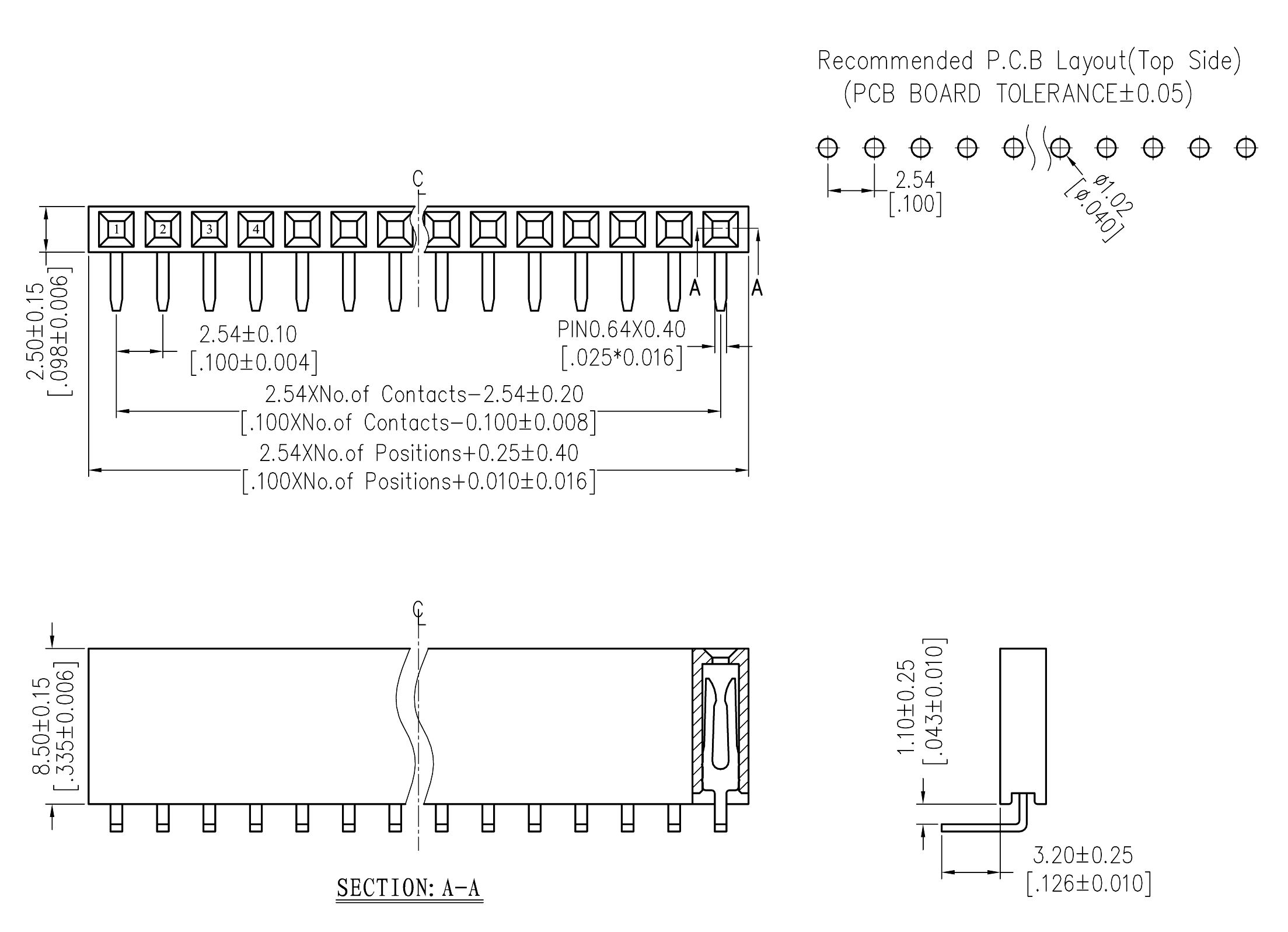

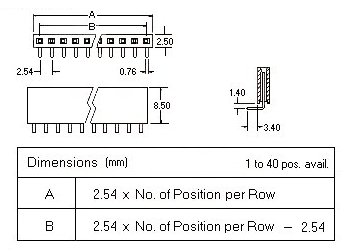

8.5mm


5.7mm


5.0mm
