Transition Plug
2559 Series : 0.100" x 0.100"  for .050" flat ribbon cable
2529 Series : 2mm x 2mm for 1mm flat ribbon cable
2159 Series : 1.27mm x 1.27mm for 0.635mm flat ribbon cable

Materials:
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold or 0.00381mm [0.000150"] Tin
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black
Recommended Cable: 1.27mm ctr. Ribbon Cable 28 AWG; FC Series

Electrical:
Contact Current Rating: 1Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -55^oC to +105^oC

---

Ordering Part Number

2559 -	[][]	[][]	- []
Series Number	Number of Positions (2 rows)	Contact Plating	Options
	6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 36, 40, 44, 50, 56, 60, 62, 64	GT: 5u" Selected Gold
2559 -	1 x [] (1 rows)	[][]
	4 ~ 24	GT: 5u" Gold
2559S -	1 x [] (1 rows)	[][]
Slim Type	2 ~ 36	GT: 5u" Gold
2529 -	[][]	[][]	- [][]
2mm	6, 8, 10, 12, 14, 16, 20, 24, 26, 30 34, 36, 40, 44, 50 56, 60, 62, 64	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blank: With Polarization and Strain Relief N: Without Center Polarization 2: Without Strain Relief 2N: Without Polarization and Strain Relief
2159 -	[][]	[][]
1.27mm	6, 8, 10, 12, 14 16, 20, 22, 26 30, 34, 40, 44 50, 60, 68, 80	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold

** One row IDC - Only offer by a completed assembly ribbon cable only, Not connector along.

2559 Series 2 rows

2559 Series 1 rows

2559 Series 1 rows Slim Type

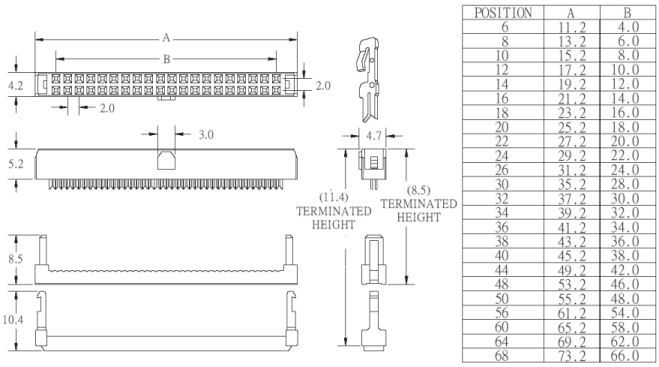

2529 Series

2159 Series
