3003 Series
0.283" D-Sub PCB Machine Contacts

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Brass Copper - Precision Machine Formed
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White, Black

Alternative: Stamped Contact Type [ click here ]

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^o

^{Drawing : 3003 (pdf)
Drawing : 3003 w Cross Bar, L Bracket, Fix Nut.}

Ordering Part Numbers

3003 -	[]	[]	T	-[]	[][]	B	AN
Series Number	Type	Number of Position	Shell Type	Insulator Color	Contact Plating	CrossBar	Mount Bracket w Cross Bar
	Plug: 0 Recept: 1	1:  9 2: 15 5: 25 6: 37 7: 50	Tin Shell	Blank: White BK: Black	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold		A: L Bracket w Board Lock N: #440 Thread Fix Nut

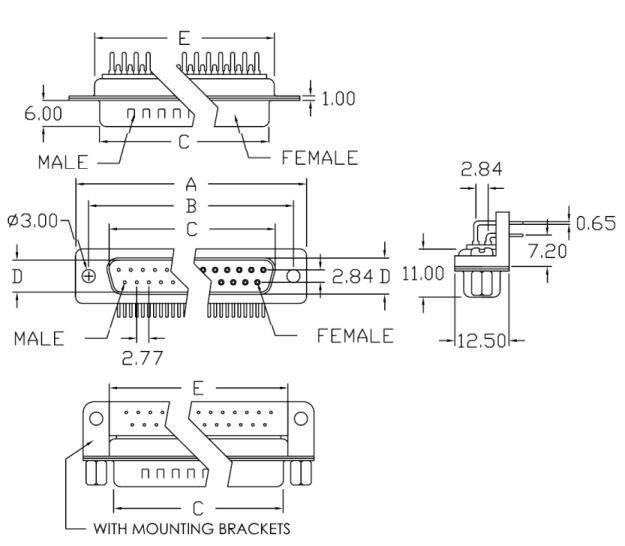

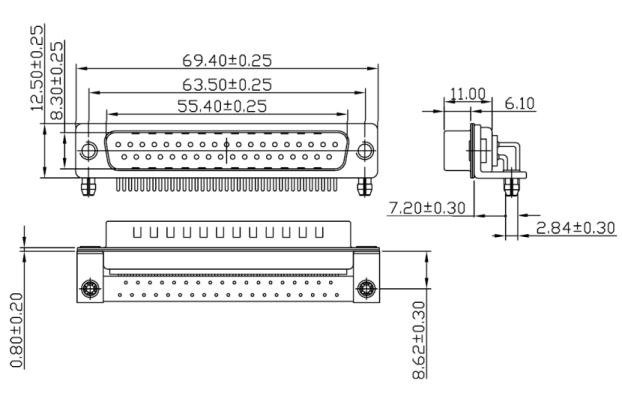

Mechanical Specification and Mounting Option:
