3018S / (Include 3028 Series old PN)
D-Sub PCB High Profile, Stamp Contact

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Solder Tail Plating: 0.00381mm [0.000150"] Tin
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black
RoHS compliance

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC


Ordering Part Number

3018S -

 []

[][]

[]

 []

- []

Series Number

 Gender

Number of Positions

Contact Plating

 Contact Length

Options

Stamped Pin

 0: Plug.
1: Socket

1: 9 Pos.
2: 15 Pos.
5: 25 Pos.
6: 37 Pos.
7: 50 Pos.

Blank: Gold fLASH
F: 10u" Gold (MOQ)
E: 15u" Gold (MOQ)
D: 30u" Gold (MOQ)

 Blank: 3.0mm
4: 4.8mm (MOQ)
6: 16.5mm (MOQ)

2N: Blank: 3mm Hole
2N: 4mm #440 Open Hex Nut Rear.
2NA: 6mm #440 Open Hex Nut Front.
2NB: 6mm #440 Closed Hex Nut Front.
4ND: 11mm #440 Stand Off.

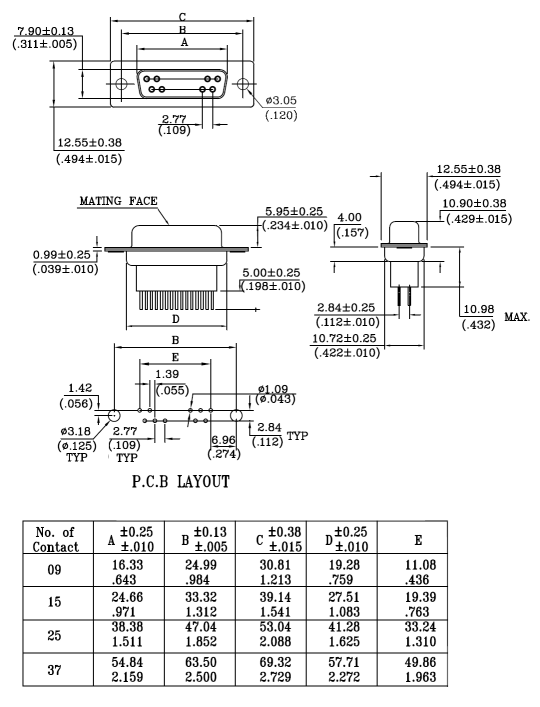

Mechanical Specification and Mounting Option:
Tail Length change from 3.0mm to 3.6mm (Jan 2011)
Dimenion (mm)
Shell
Size		 No.
Po.		 Plug \
Recept		 A B C D E
E 9 Plug 30.81 24.88 16.92 19.28 8.36
Recept 16.33 7.90
A 15 Plug 39.14 33.32 25.25 27.51 8.36
Recept 24.66 7.90
B 25 Plug 53.04 47.04 38.96 41.30 8.36
Recept 38.38 7.90
C 37 Plug 69.32 63.50 55.42 57.71 8.36
Recept 54.84 7.90
