| 3108 Series and 3208 Series D-Sub Crimp Housing High Density Material: Shell: Steel w/ Tin Plated Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O Contacts: [ click here ] Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105oC
|

|
| Ordering Part Number | |||||
| Shell Size |
No. of Position |
Plug (M) / Recept (F) |
Tin Shell | ||
| Mounting Hole | Clinch Nut | Fixed Jackscrew | |||
| E | 15 | Plug (M) | 3108-15 | 3108-15-2N | 3108-15-2NA |
| Recept (F) | 3208-15 | 3208-15-2N | 3208-15-2NA | ||
| A | 26 | Plug (M) | 3108-26 | 3108-26-2N | 3108-26-2NA |
| Recept (F) | 3208-26 | 3208-26-2N | 3208-26-2NA | ||
| B | 44 | Plug (M) | 3108-44 | 3108-44-2N | 3108-44-2NA |
| Recept (F) | 3208-44 | 3208-44-2N | 3208-44-2NA | ||
| C | 62 | Plug (M) | 3108-62 | 3108-62-2N | 3108-62-2NA |
| Recept (F) | 3208-62 | 3208-62-2N | 3208-62-2NA | ||
| D | 78 | Plug (M) | 3108-78 | 3108-78-2N | 3108-78-2NA |
| Recept (F) | 3208-78 | 3208-78-2N | 3208-78-2NA | ||
| * Part Number includes Housing Only. Contacts are ordered
separate. * For contact part numbers and specification [ click here ] * Also Available (Contact Ho Chien for more information): - Blue or Black insulation. - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply. |
|||||

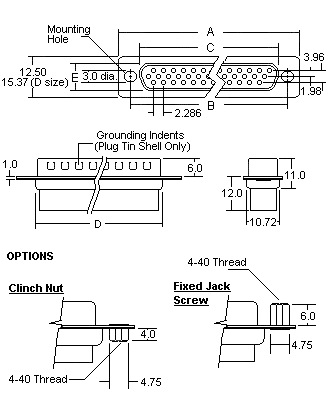

Mechanical Specification and Mounting
Option:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
