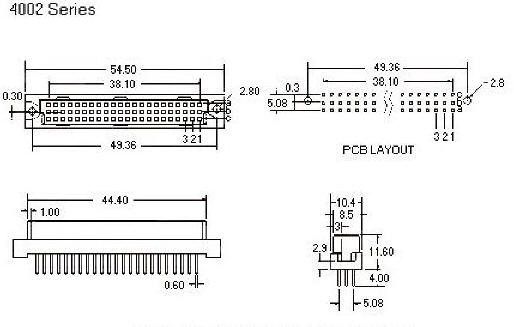

4002 Series
0.100" DIN 41612 Socket Straight PCB Mount

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Solder Tail Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O

Electrical:
Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -25oC to +105oC
Ordering Part Numbers
Mounting Option

No. of
Positions

No. of
Contacts

Rows with
Contacts

Part Number
PCB Dip

 Part Number
Press Fit



 Contact Plating


96 96 a b c 4002-3396T 4002-3396P pdf drawing T: 5u" Gold Select

GT10: 10u" Gold Select

GT15: 15u" Gold Select

GT30: 30u" Gold Select
96 64 a & c 4002-3264T 4002-3264P pdf drawing  specs
48 48 a b c 4002-3348T 4002-3348P pdf drawing  specs
48 32 a & c 4002-3232T 4002-3232P pdf drawing  specs
64 64 a b 4002-2264T 4002-2264P pdf drawing  specs
64 32 a 4002-2132T 4002-2132P pdf drawing  specs
32 32 a b 4002-2132T 4002-2132P pdf drawing  specs
32 16 a 4002-2116T 4002-2116P pdf drawing  specs


4002-3396T
4002-3348P
4002-2264T
4002-2132T
