5702 & 5703 Series
Centronic Connector; IDC Type for 0.050 Ribbon Cable
[ EMI Front Shield ]

Materials:

Contact: Phosphor Bronze
Contact Plating: 0.000005" Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Shell: Steel; Nickel Plated
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue


Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V DC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC



spec in pdf formate


RoHs
Ordering Part Number
5702 - [][]
Series Number Number of Positions
5702: Plug [ Male ]
5703: Recept [ Female ]		 36, 50

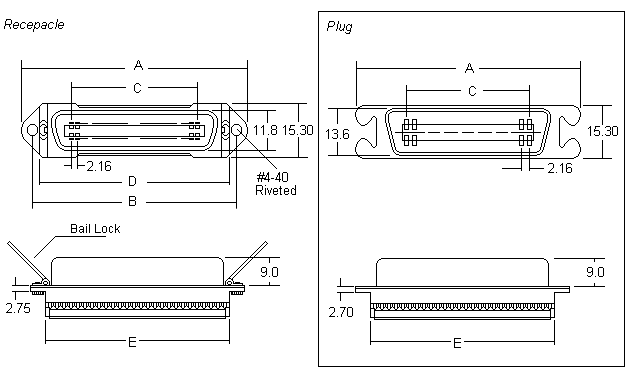

Dimensions ( mm )
Part Number Pos. A B C D E
5702-36 36 61.60 - 36.70 - 53.30
5703-36 67.60 59.70 36.70 58.80 53.30
5702-50 50 76.70 - 51.80 - 68.50
5703-50 82.80 74.90 51.80 74.25 68.50
