5730 Series
Centronic Connector; Solder Type Plug
[ EMI / RFI Shield ]

Materials:
Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Shell: Steel; Nickel Plated
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V DC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

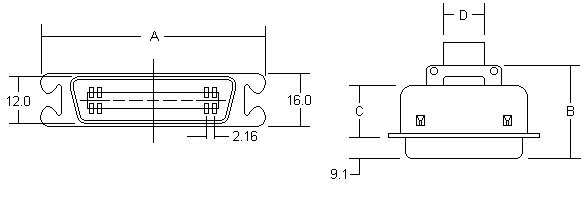

Dimensions ( mm )

Part Number

Pos.

A

B

C

D

5730-14

14

37.80

41.40

21.40

7.60 x 10.40

5730-24

24

48.60

41.00

21.00

11.80

5730-36

36

61.60

42.40

23.00

15.80 x 11.80

5730-50

50

76.70

45.00

25.40

19.00 x 11.80
