M01 Series
Hardware for Molding Cable Assemblies
[ EMI Protection Shielding Cans ]

Material:

Metal Shield: Steel; Tin plated

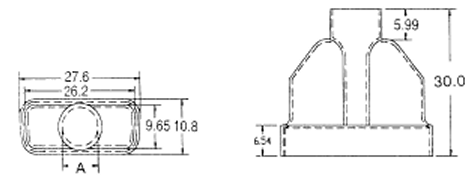

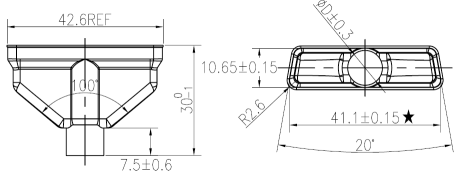

Mecanical Drawing: M01-09 ; M01-15 ; M01-25


RoHs
Ordering Part Number (D_Sub)
M01 - [][] - OD [][]
Series Number Shell Size Cable opening Inner Dia.

09: 9 Pos. (Size E)
15: 15 Pos. (Size A)
25: 25 Pos. (Size B)
 See Table
Example: for 7.2mm Cable enter 7.2
See table for available sizes.
TABLE: RECOMMENDED CABLE SIZES (7.2MM STANDARD SIZE, NON STANDARD SIZE HAS MIN.  QTY 3K)
Shell Size:
Standard:
High Density:		 Size E
9
15		 Size A
15
26		 Size B
25
44
Available
Cable Opening
Dia. (mm):
5.5
7.2
9.5
10.8
7.2
9.5
 7.2
9.5
10.8
