1600 Series
High Power Combo D-Sub - Vertical PCB Type
Update: 5/8/07'

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Signal Contacts: Berylium Copper
High Power Contacts: Brass
Signal Contact Plating: 0.000005" Gold
High Power Contact Plating: 0.000015" Gold
Contact Underplating: 0.000100" min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic
                : UL94V-O UL File# E107536, material D202G30@

Electrical:
Signal Contact Rating: 7.5 Amp
High Power Contact Rating: 40, 20 or 10 Amp
Dielectric Withstanding: 1500V at sea level
Operation Temperature: -55oC to +105oC

Drawing:  1621 (pdf)

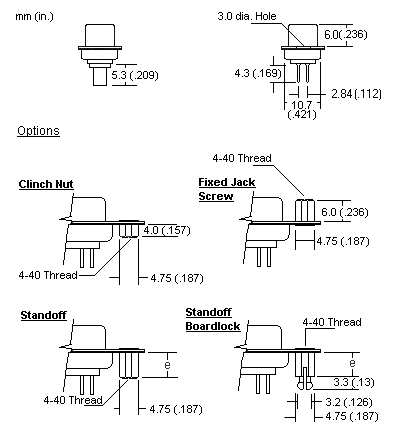

Mechanical Specification and Mounting Option:
Option Mea.
" e "		 Part Number
(Suffix)
3.0 dia Hole - (Standard)
Fixed Jack Screw - -2NA
Clinch Nut - -2N
Standoff 6.0 -2NB
6.4 -3NB
7.62 -7NB
Standoff Boardlock 6.0 -2ND
6.4 -3ND
7.62 -7ND
Standoff Boardlock
with Fixed Jackscrews		 6.0 -2NJ
6.4 -3NJ
7.62 -7NJ

Ordering Part Numbers

Effective Apr. 15, 2001 part numbers for this series has changed. The part numbers below are the new P/N.

Click Here to see a cross reference of the new P/N to the old P/N. For assistance E-Mail us at sales@hochien.com or call (909)596-6298.

Shell
Size		 Contact Arrangements
(Front view of Plug/ Rear view of Recept)		 Plug \
Recept		 Part Number Dimensions mm
40 Amps 20 Amps 10 Amps A B C D
E
2W2		 Plug 1640-22T 1620-22T 1610-22T 30.81 16.92 24.88 8.36
Recept 1641-22T 1621-22T 1611-22T 16.33 7.87

5W1		 Plug 1640-51T 1620-51T 1610-51T 16.92 8.36
Recept 1641-51T 1621-51T 1611-51T 16.33 7.87
A spec-coax-3w3.gif
3W3		 Plug 1640-33T 1620-33T 1610-33T 39.14 25.25 33.32 8.36
Recept 1641-33T 1621-33T 1611-33T 24.66 7.87
3V3
 Plug
 1640-23T
 1620-23T
 1610-23T
 25.25
 8.36
Recept
 1641-23T
 1621-23T
 1611-23T
 24.66
 7.87

7W2		 Plug 1640-72T 1620-72T 1610-72T 25.25 8.36
Recept 1641-72T 1621-72T 1611-72T 24.66 7.87

11W1		 Plug 1640-11T 1620-11T 1610-11T 25.25 8.36
Recept 1641-11T 1621-11T 1611-11T 24.66 7.87
B
5W5		 Plug 1640-55T 1620-55T 1610-55T 53.04 38.96 47.04 8.36
Recept 1641-55T 1621-55T 1611-55T 38.38 7.87

13W3		 Plug 1640-13T 1620-13T 1610-13T 38.96 8.36
Recept 1641-13T 1621-13T 1611-13T 38.38 7.87

17W2		 Plug 1640-12T 1620-12T 1610-12T 38.96 8.36
Recept 1641-12T 1621-12T 1611-12T 38.38 7.87

21W1		 Plug 1640-21T 1620-21T 1610-21T 38.96 8.36
Recept 1641-21T 1621-21T 1611-21T 38.38 7.87
C
8W8		 Plug 1640-88T 1620-88T 1610-88T 69.32 55.42
 63.50 8.36
Recept 1641-88T 1621-88T 1611-88T 54.84
 7.87
25W3
 Plug
 -
 -
 -
 55.42
 8.36
Recept
 -
 -
 -
 54.84
 7.87
17W5
 Plug
 1640-15T
 1620-15T
 1610-15T
 55.42
 8.36
Recept
 1641-15T
 1621-15T
 1611-15T
 54.84
 7.87

21W4		 Plug 1640-24T 1620-24T 1610-24T 55.42 8.36
Recept 1641-24T 1621-24T 1611-24T 54.84 7.87
13W6
 Plug
 1640-16T
 1620-16T
 1610-16T
 55.42
 8.36
Recept
 1641-16T
 1621-16T
 1611-16T
 54.84
 7.87
PIC-27W2.gif 27W2
 Plug
 1640-27T
 1620-27T
 1610-27T
 55.42
 8.36
Recept
 1641-27T
 1621-27T
 1611-27T
 54.84
 7.87
D
36W4		 Plug 1640-34T 1620-34T 1610-34T 66.93 52.81 61.11 11.07
Recept 1641-34T 1621-34T 1611-34T 52.43 10.74
* Part Numbers includes Housing, and Preloaded Signal Contacts and High Power Contacts (Preloaded).
* Housing with Preloaded Signal Contacts and High Power Contacts may be ordered seperately. Contact Ho Chien to Order.
* To order High Power Contacts only sperately, see table below for Part Numbers.
* Economic stamp pin type on signal contacts available.
* Zinc shell, Insulation color and gold on contact options are available. Contact Ho Chien for more info.

High Power Contacts - Vertical PCB Type


Part Number
( For Ordering Individual Contacts )
Rating
(Amps)		 Dim A
dia. (mm)		 Plug Contact Recept Contact
40 3.75 1640-00 1641-10
20 2.80 1620-00 1621-10
10 1.70 1610-00 1611-10
